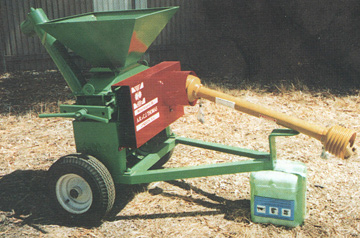

150 mm (6”) Roller Mill on Trailer with PTO Drive Shaft

For the perfect crushed grain ideal for

• Beef Cattle
• Dairy Cattle
• Poultry
• Horses etc

CAPACITY IN TONS PER HOUR

• Wheat, Triticale,Sorghum 6
• Corn 4
• Barley, Lupins Peas 4
• Oats 2.5

Rollers 150 wide * 240 mm dia. Teeth (flutes) angular cut at 90 degrees, tooth form for longer life, greater capacity and a better product.

Both rollers belt driven for positive feed and quieter longer life.

Spring release mechanism allows foreign objects to pass through without any damage to rollers or bearings.

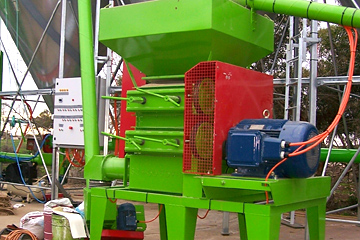

Dairy Type Feed Mixing System

• 150mm or 300mm-roller mill with electric dirve kit and electric motor.
• Contrated mineral and vitamin feeder on special silo.
• Auger up to holding silo with foot mounted electric motor

Dairy Type Feed Mixing System

300mm (12”) Roller Mill Bare Shaft Unit

For the perfect crushed grain ideal for

• Beef cattle
• Dairy Cattle
• Poultry
• Horses etc

CAPACITY IN TONS PER HOUR

• Wheat, Triticale, Sorghum 11
• Corn 9
• Barley, Lupin, Peas 7
• Oats 5

Rollers 300 wide * 240mm dia Heavy, alloy iron, flame hardened wear resistant.
Teeth (Flutes) angular cut & 90 degree tooth form for longer life, greater capacity & better product.

Both rollers belt driven for positive feed, quieter longer life.
Spring release mechanism allows foreign objects to pass through without any damage to rollers or bearings.

Trailer units, electric drive kits, longer augers, bagging attachments and magnets etc., available.

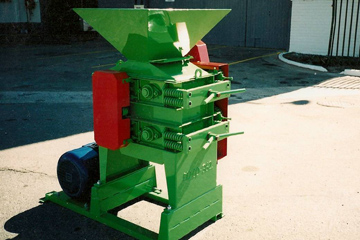

300mm (12”) Double Crush Rollermill With Electirc Motor Drive

Designed for pig feed, also ideal for all other animal feeds.

Allows easy infinitely variable gristing from just broken to very fine partical size, easy and simple adjustment.

NO DUST IN FEED
Rollers 300mm wide * 240mm dia heavy alloy iron, flame hardened and wear resistant.

Teeth (flutes) angular cut 90 degree tooth form for longer life, greater capacity and better product.

All 4 rollers are belt driven for positive feed and quieter longer life.
Spring release mechanism allows foreign objects to pass through without damage to rollers or bearings.

Many options available including augers, magnets etc.

CAPACITY IN TONS PER HOUR

• Wheat, Triticale and Sorghum 11
• Corn 9
• Barley, Lupins and Peas 7-5
• Oats 5

600 (24”) Double Crush Rollermill for Pig Feed

Coupled to 5 ton feed mixer

Allows infinitely variable gristing from just broken to very fine partical size.

Easy and simple adjustment.

No dust in feed.

Designed for pig feed, but also perfect for all animal feed.

CAPACITY IN TONS PER HOUR

• Wheat, Triticale and Sorghum 22
• Corn 18
• Barley, Lupins, Peas 15
• Oats 10

Rollers 300mm wide * 240mm dia heavy alloy iron, flame hardened and weat resistant.
Teeth (flutes) angular cut 90 degree tooth form for longer life, greater capacity and better product.
All 4 rollers are belt driven for positive feed and quieter longer life.

Spring release mechanism allows foreign objects to pass through without damage to rollers or bearings.

Many options available including augers, magnets etc.

Double Crush 300mm Rollermill & Feed Mixing Unit

Unit shown driven by diesel engine.
Can also be driven with electric motor or tractor PTO

Mounted on electronic wighing system and with computerised batching.
Infinitely variable adjustment to gristing.
Allows the production of the finest feeds to pigs and any other animals.
Mixer has our special inverted cone mixing system for faster and more thorough blending.

Many Sizes Available

CAPACITY IN TONS PER HOUR

• 150mm 4
• 300mm 7-5
• 600mm 15
• 1200mm 35

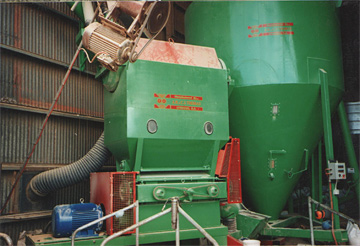

Large Commercial Feed Mill

1200mm wide industrial type roller mill with overhead rotary screed.

15 ton feed mixer on electronic weighing
Rollermill constructed from massive steel beams and heavy steel plate.

Rollers solid alloy iron, 1200mm wide and 330mm dia on high tensile shafts with 100mm dia bearings.

Teeth (flutes) angular cut at 90 degree tooth form for longer life, greater capacity and better product.

Both rollers are belt driven for quiet operation and positive feed.
Spring release mechanism for protection for rollers and bearings.

CAPACITY IN TONS PER HOUR

• Wheat, Triticale and Sorghum 50
• Corn 40
• Barley, Lupins and Peas 35
• Oats 30

Also available as 600mm wide model.

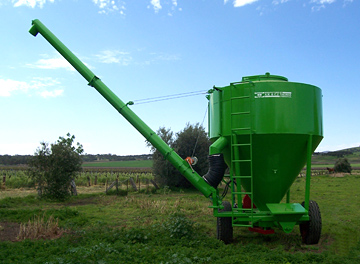

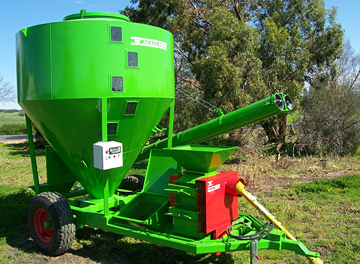

Mobile Milling & Mixing Machines

300mm Double Crush Mill, Including 4 ton mixing tank

Mounted on light truck wheels and tyres infinitely variable adjustments to crushing allow the production of the finest feeds to pig or any other animal.

Mixer has our special inverted cone mixing system for faster and more thorough blending .

Also shown large addititves hopper, oil or tallow additives tube, long hydraulically driven unloading auger, which swivels 260 degrees folds and mounts in carrier brackets for transportation.

• Single roller can also be fitted
• Various sizes available
• Electronic weighing system

CAPACITY IN TONS PER HOUR

150 - 4
300 - 7
600 - 15

• Feed Mixing tanks available in 2 ton and 4 ton capacities.
• Other options available inc magnets etc.
• No dust in feed and low power requirements.

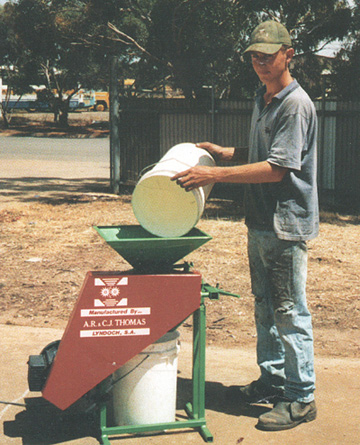

Small Roller Mill

For perfectly crushed grain
Ideal for small herds of

• Beef cattle
• Dairy cattle
• Poultry
• Horses etc

CAPACITY IN kg PER HOUR

• Wheat, Triticale and Sorghum 350
• Corn 300
• Barley, Lupins and Peas 250
• Oats 150

Rollers 50mm wide * 180mm dia, heavy alloy iron, flame hardened wear resistant.

Teeth (flutes) angular cut at 90 degree tooth form for longer life greater capacity and better product.

Both rollers belt driven for positive feed.

Spring release mechanism allows foreign objects to pass through without any damage to rollers or bearings.

1.1kw 1 phase electric motor plugs into any 3 pin power outlet
Make your own feed, savemoney and feed fresh rolled grain.

Rolls up to 5 bags per hour.

• Barley
• Oats
• Peas
• Lupins etc
